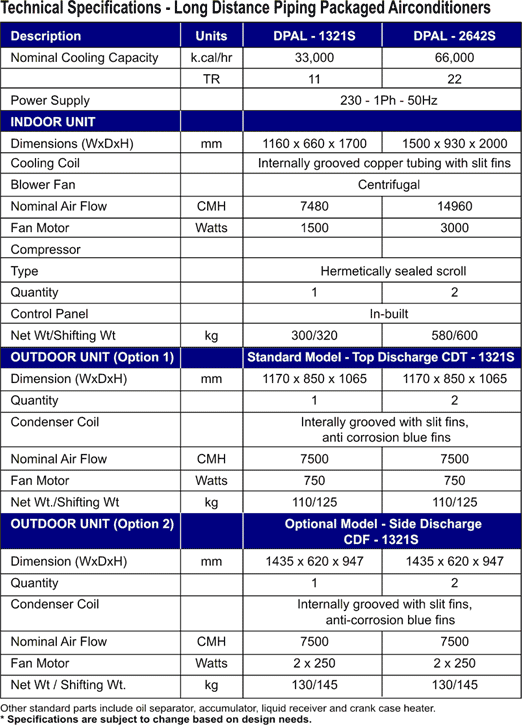

LONG DISTANCE PIPING PACKAGED ACS   Brochure     Technical Specifications     Back

Blue Star's Long Distance Piping Packaged Airconditioners (LDPAs) represent smart cooling solutions for modern high-rise buildings such as IT Parks, BPOs, malls and multiplexes, that sport glass facades. The LDPAs are Packaged ACs designed to operate with extended piping, thereby allowing the condensers to be located far from the indoor units. Hence, while the indoor unit can cool the ground floor, the condenser may be placed as high as 50m away, on the terrace, compared to just 7m of the conventional Packaged AC. Horizontal piping distances can run up to as much as a 100m. These extended piping distances facilitate easy installation on the ground or on the terrace, and offer more flexibility to design the AC system to suit specific building architecture.


  • Easy installation in glass fronted high-rises
  • Space-saving up flow option
  • Customized Ducting Design
  • Superior cost efficiency
  • Quick project completion
